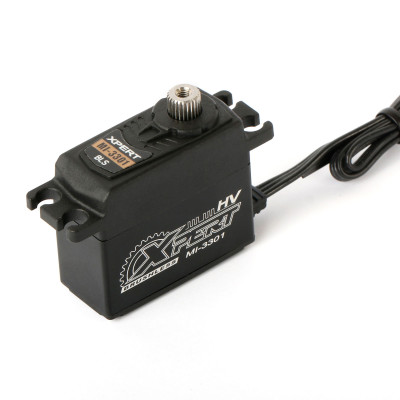

MI-3301-HV Mini Size Aluminum Servo

  • Features
    • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
    • Plastic upper and lower case with center aluminum design
    • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
    • Light weight design
    • All Aluminum case for the best thermal dissipation and durability.
    • Strong Metal Gear
    • Glitch-free
    • Sophisticated error correction
    • High-Speed, High-precision 12-bit AD converter and CPU calculation
    • Fail safe
    • Over current protection
    • Over temperature protection
    • Start sonorant

Specifications

Buy Now
Type Mini
Product Name MI-3301-HV Mini Size Aluminum Servo
Part Name MI-3301-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .0083sec/60° @8.4V: .06 sec/60°
Torque (oz/in) @6.0V: 141.85 oz-in @8.4V: 198.48 oz-in
Torque (kg/cm) @6.0V: 10.21 kg-cm @8.4V: 14.29 kg-cm
Dimensions 33.6x15x29.5mm
Weight 37.5g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520 us
Applications 1/12 Surface, Airplane Aileron
Gear Set P/N XGS72000
