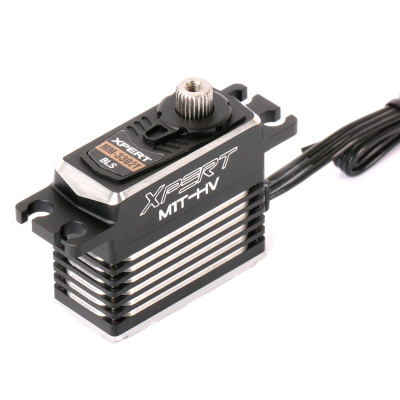

MM-3302T-HV M1T Mini Size Full Aluminum Servo
Features
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- Full aluminum case design
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
Specifications
Buy Now| Type | Mini |
| Product Name | MM-3302T-HV M1T Mini Size Full Aluminum Servo |
| Part Name | MM-3302T-HV (M1T) |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @8.4V: .049 sec/60° |
| Torque (oz/in) | @8.4V: 166.56 oz-in |
| Torque (kg/cm) | @8.4V: 12.00 kg-cm |
| Dimensions | 33.6x15x29.5mm |
| Weight | 40.5g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 760 us |
| Applications | Helicopter Tail |
| Gear Set P/N | XGS72000 |
