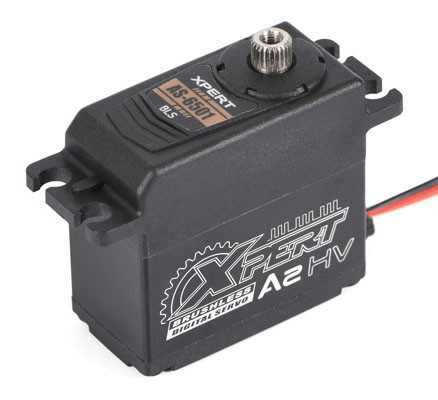

AS-6501-HV A2 Standard Size Aluminum Servo

  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Aluminum case with engineering plastic upper and bottom support
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant


Buy Now
Type Standard
Product Name AS-6501-HV A2 Standard Size Aluminum Servo
Part Name AS-6501-HV
Power Supply 4.8V~8.4V
Speed (sec/ 60°) @7.4V: .104 sec/60° @8.4V: .096 sec/60°
Torque (oz/in) @7.4V: 304.95 oz-in @8.4V: 348.94 oz-in
Torque (kg/cm) @7.4V: 21.97 kg-cm @8.4V: 25.14 kg-cm
Dimensions 40x20x37.8mm
Weight 71g
Center Position 1520us
Applications Airplane
