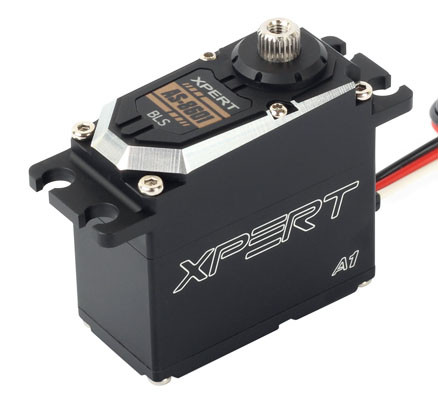

AS-8601-HV A1 Standard Size Aluminum Servo

Features
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Aluminum case with engineering plastic bottom support
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant

Specifications

Buy Now
Type Standard
Product Name AS-8601-HV A1 Standard Size Aluminum Servo
Part Name AS-8601-HV
Power Supply 4.7V~8.4V
Speed (sec/ 60°) @6.0V: .14 sec/60° @7.4V: .11 sec/60° @8.4V: .10 sec/60°
Torque (oz/in) @6.0V: 378.37 oz-in @7.4V: 467.06 oz-in @8.4V: 530.22 oz-in
Torque (kg/cm) @6.0V: 27.26 kg-cm @7.4V: 33.65 kg-cm @8.4V: 38.20 kg-cm
Dimensions 40x40.5x20 mm
Weight 79.8g
Center Position 1520us
Applications Airplane
