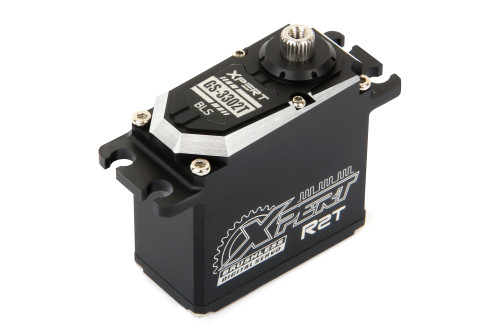

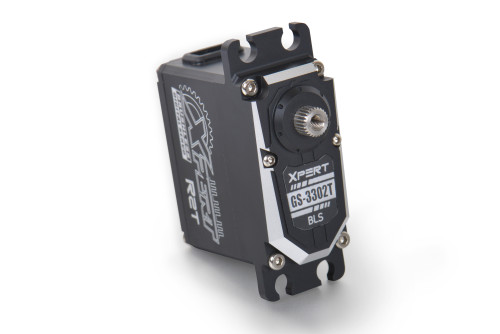

GS-3302T-HV R2T Standard Size Aluminum Servo
Features
- Quick release cable that allows easy and quick installation for all helicopters.
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- Aluminum upper and center case.
- Plastic bottom case.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
- Operating frequency up to 800Hz
Specifications
Buy Now| Type | Standard |
| Product Name | GS-3302T-HV R2T Standard Size Aluminum Servo |
| Part Name | GS-3302T-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .056 sec/60° @7.4V: .045 sec/60° @8.4V: .040 sec/60° |
| Torque (oz/in) | @6.0V: 166.56 oz-in @7.4V: 205.43 oz-in @8.4V: 233.18 oz-in |
| Torque (kg/cm) | @6.0V: 12.00 kg-cm @7.4V: 14.80 kg-cm @8.4V: 16.80 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 70g |
| Range | up to 800Hz |
| Center Position | 760us |
| Applications | Helicopter Tail |
| Gear Set P/N | XGS7162S |
