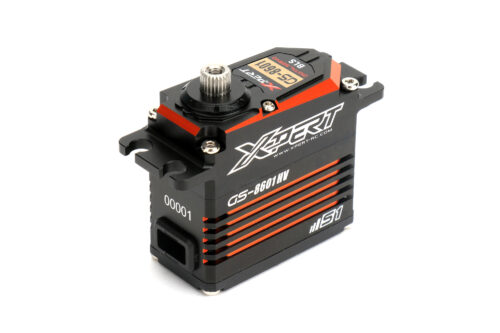

GS-8601-HV S1 Standard Size Aluminum Servo

Features
  • Ultra-High performance design specifically for 1/10 and 1/8 surface competitions
  • Supports most high-speed response radio systems on the market

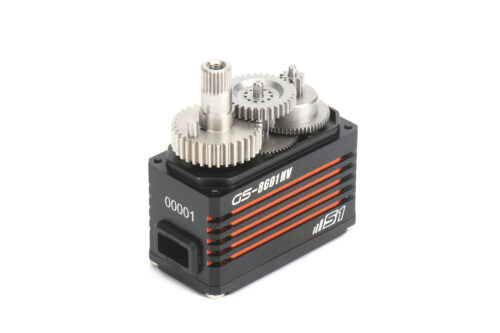

  • All-new full stainless steel gears prolong the durability
  • Enlarged 2mm gear alignment pins for improving the durability under impact
  • Water-resistance structure
  • 25T output shaft with quick release servo lead
  • Over-current protection
  • Over-temperature protection
  • Download specifications

Specifications

Type Standard
Product Name GS-8601-HV S1 Standard Size Aluminum Servo
Part Name GS-8601-HV
Power Supply 5.0V~8.4V
Speed (sec/ 60°) @6.0V: .153 sec/60° @7.4V: .131 sec/60° @8.4V: .124 sec/60°
Torque (oz/in) @6.0V: 360 oz-in @7.4V: 460 oz-in @8.4V: 555 oz-in
Torque (kg/cm) @6.0V: 25.9 kg-cm @7.4V: 33.1 kg-cm @8.4V: 40.0 kg-cm
Dimensions 40.0mm*20.0mm*44.3mm
Weight 71g
Range 250us-500us,500us-1000us, 1000u-2000us(auto adaptive)
Applications 1/8 and 1/10 Surface Steering
Gear Set P/N XGS-S291
