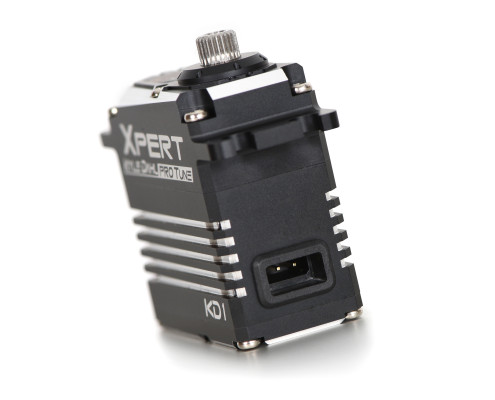

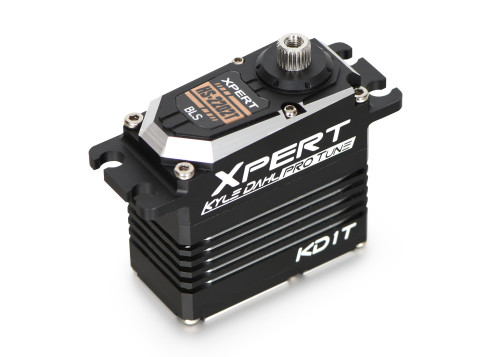

HS-2202T-HV KD1T Standard Size Full Aluminum Servo
Features
- Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
- Global 3D 2017 Competition Winning Servo.
- Ultra High Responsive cyclic algorithm software.
- Quick release cable that allows easy and quick installation for all helicopters.
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
- Operating frequency up to 800Hz
Specifications
Buy Now| Type | Standard |
| Product Name | HS-2202T-HV KD1T Standard Size Full Aluminum Servo |
| Part Name | HS-2202T-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: 0.045 sec/60° @7.4V: .040 sec/60° @8.4V: .035 sec/60° |
| Torque (oz/in) | @6.0V: 74.95 oz-in @7.4V: 92.44 oz-in @8.4V: 104.93 oz-in |
| Torque (kg/cm) | @6.0V: 5.40 kg-cm @7.4V: 6.66 kg-cm @8.4V: 7.56 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 73.6g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 760us |
| Applications | Helicopter Tail |
