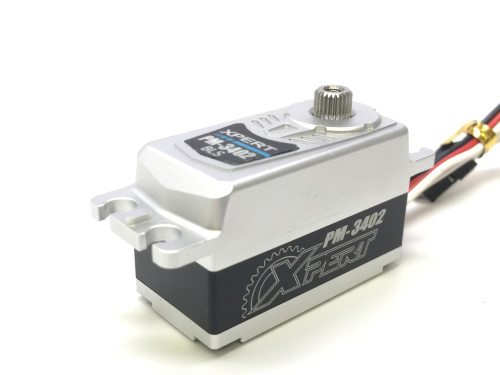

PM-3402 Low Profile Full Aluminum Servo
Features
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 200+ oz-in torque
- Full aluminum case design
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.

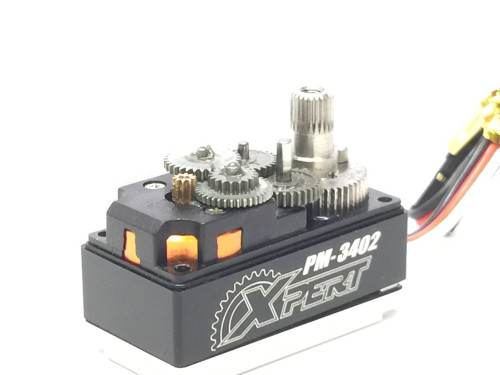

- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
| Type | Low Profile |
| Product Name | PM-3402 Low Profile Full Aluminum Servo |
| Part Name | PM-3402 |
| Power Supply | 4.8~6.6V |
| Speed (sec/ 60°) | @4.8V: .087 sec/60° @6.0V: .070 sec/60° @6.6V: .063 sec/60° |
| Torque (oz/in) | @4.8V: 166.56 oz-in @6.0V: 208.20 oz-in @6.6V: 229.02 oz-in |
| Torque (kg/cm) | @4.8V: 12.0 kg-cm @6.0V: 15.0 kg-cm @6.6V: 16.5 kg-cm |
| Dimensions | 40.8X20.2X26.8 mm |
| Weight | 52g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | 1/10 Buggy and Touring Car |
