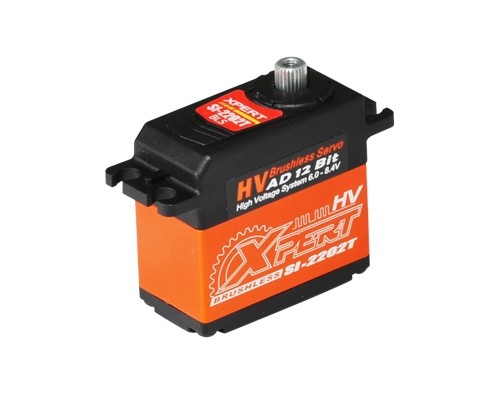

SI-2202T-HV Standard Size Aluminum Servo
Features
- Brushless motor design provides extremely high speed, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Aluminum middle case for optimized thermal dissipation.
- Strong All Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
Specifications
| Type | Standard |
| Product Name | SI-2202T-HV Standard Size Aluminum Servo |
| Part Name | SI-2202T-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .049 sec/60° @7.4V: .040 sec/60° @8.4V: .035 sec/60° |
| Torque (oz/in) | @6.0V: 74.95 oz-in @7.4V: 92.44 oz-in @8.4V: 104.93 oz-in |
| Torque (kg/cm) | @6.0V: 5.40 kg-cm @7.4V: 6.66 kg-cm @8.4V: 7.56 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 62.5g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 760us |
| Applications | Helicopter Tail |
