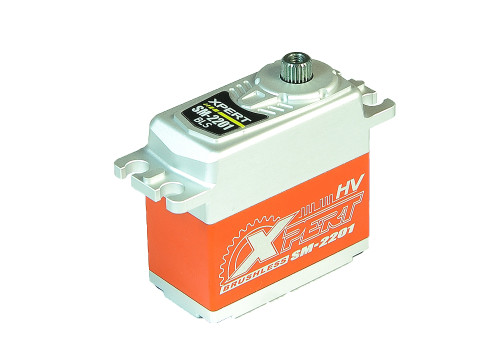

SM-2201-HV Standard Size Full Aluminum Servo

  • Brushless motor design provides extremely high speed, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Full aluminum middle case for the best thermal dissipation and durability.
  • Strong All Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant


Type Standard
Product Name SM-2201-HV Standard Size Full Aluminum Servo
Part Name SM-2201-HV
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: 0.047 sec/60° @7.4V: .038 sec/60° @8.4V: .033 sec/60°
Torque (oz/in) @6.0V: 83.28 oz-in @7.4V: 102.71 oz-in @8.4V: 116.59 oz-in
Torque (kg/cm) @6.0V: 6.00 kg-cm @7.4V: 7.40 kg-cm @8.4V: 8.40 kg-cm
Dimensions 40x37.80x20 mm
Weight 73.60 g
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 1520Hz
Applications Helicopter Tail
