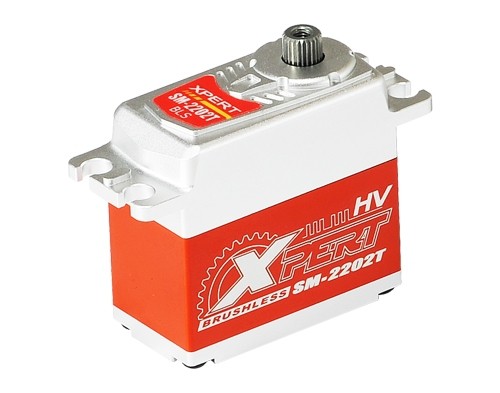

SM-2202T-HV Standard Size Full Aluminum Servo
Features
- Brushless motor design provides extremely high speed, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Full aluminum middle case for the best thermal dissipation and durability.
- Strong All Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
Specifications
Type | Standard |
Product Name | SM-2202T-HV Standard Size Full Aluminum Servo |
Part Name | SI-2202T-HV |
Power Supply | 6.0V~8.4V |
Speed (sec/ 60°) | @6.0V: 0.047 sec/60° @7.4V: .038 sec/60° @8.4V: .033 sec/60° |
Torque (oz/in) | @6.0V: 83.28 oz-in @7.4V: 102.71 oz-in @8.4V: 116.59 oz-in |
Torque (kg/cm) | @6.0V: 6.00 kg-cm @7.4V: 7.40 kg-cm @8.4V: 8.40 kg-cm |
Dimensions | 40x37.80x20 mm |
Weight | 73.6g |
Frequency | 200/333 Hz |
Range | 50~400 Hz |
Center Position | 760us |
Applications | Helicopter Tail |
