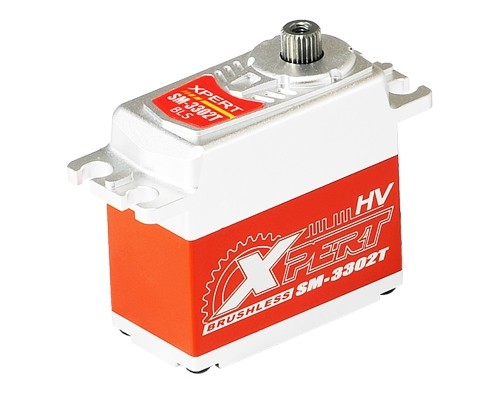

SM-3302T-HV Standard Size Full Aluminum Servo
Features
- Brushless motor design provides extremely high speed, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Full aluminum middle case for the best thermal dissipation and durability.
- Strong All Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
Specifications
| Type | Standard |
| Product Name | SM-3302T-HV Standard Size Full Aluminum Servo |
| Part Name | SM-3302T-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: 0.064 sec/60° @7.4V: .052 sec/60° @8.4V: .046 sec/60° |
| Torque (oz/in) | @6.0V: 160.87 oz-in @7.4V: 198.48 oz-in @8.4V: 225.27 oz-in |
| Torque (kg/cm) | @6.0V: 11.59 kg-cm @7.4V: 14.30 kg-cm @8.4V: 16.23 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 73.6g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 760 Hz |
| Applications | Helicopter Tail |
