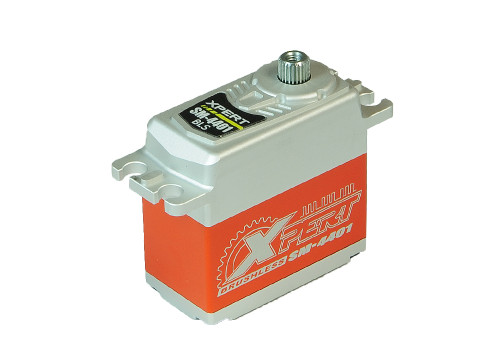

SM-4401 Standard Size Full Aluminum Servo
Features
- Brushless motor design provides extremely high speed, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Full aluminum middle case for the best thermal dissipation and durability.
- Strong All Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
| Type | Standard |
| Product Name | SM-4401 Standard Size Full Aluminum Servo |
| Part Name | SM-4401 |
| Power Supply | 4.8V~6.6V |
| Speed (sec/ 60°) | @4.8V: .106 sec/60° @6.0V: .085 sec/60° @6.6V: .077 sec/60° |
| Torque (oz/in) | @4.8V: 204.31 oz-in @6.0V: 255.39 oz-in @6.6V: 280.93 oz-in |
| Torque (kg/cm) | @4.8V: 14.72 kg-cm @6.0V: 18.40 kg-cm @6.6V: 20.24 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | 73.6g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520us |
| Applications | Helicopter Cyclic & 1/8 Surface |
