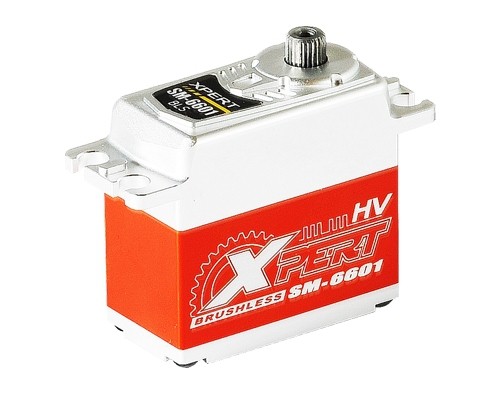

SM-6601-HV Standard Size Full Aluminum Servo
Features
- Brushless motor design provides extremely high speed, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Full aluminum middle case for the best thermal dissipation and durability.
- Strong All Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
Type | Standard |
Product Name | SM-6601-HV Standard Size Full Aluminum Servo |
Part Name | SM-6601-HV |
Power Supply | 6.0V~8.4V |
Speed (sec/ 60°) | @6.0V: .154sec/60° @7.4V: .125 sec/60° @8.4V: .118 sec/60° |
Torque (oz/in) | @6.0V: 257.75 oz-in @7.4V: 317.99oz-in @8.4V: 360.88 oz-in |
Torque (kg/cm) | @6.0V: 18.57 kg-cm @7.4V: 22.91 kg-cm @8.4V: 26 kg-cm |
Dimensions | 40x37.80x20 mm |
Weight | 66.3g |
Frequency | 200/333 Hz |
Range | 50~400 Hz |
Center Position | 1520us |
Applications | 1/8 & 1/5 Surface |
